| Brand Name : | Bently Nevada |

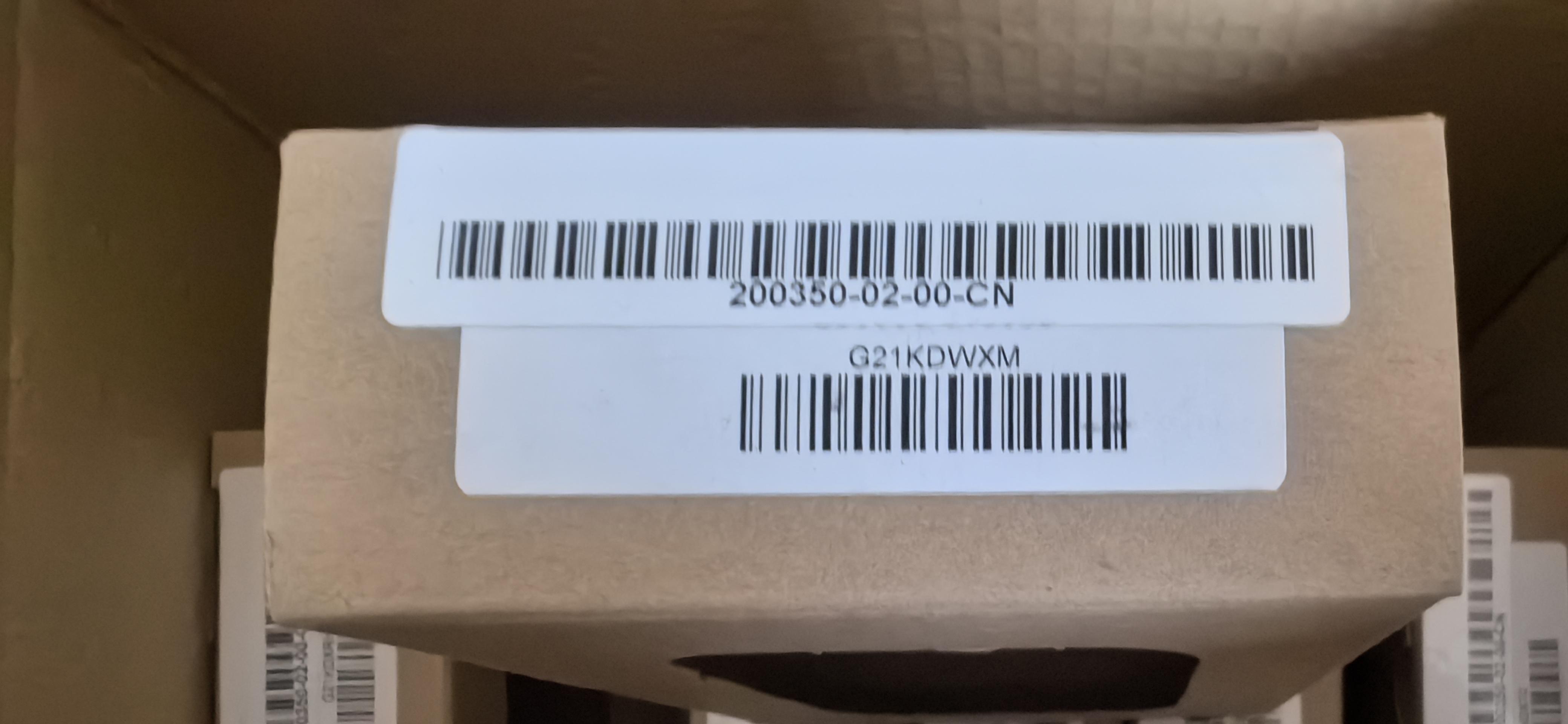

| Model Number : | 200350-02-00-CN |
| Certification : | RoHS |
| Price : | negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100pcs per month |
| Delivery Time : | 12-16weeks |
The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01.
The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.
The 200350 and 200355 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
200350 – AA - BB - CC
A: Mounting Stud | |
00 | ¼-28 SS w/ Brass tip, 0.5” |
01 | ¼-28 to M6 x 1.00 Stainless Steel |
02 | ¼-28 to M8 x 1.25 Stainless Steel |
09 | No mounting stud |
10 | 1/4 -28 Adhesive Stud Mount |
11 | M6x1 Adhesive Stud Mount |
12 | M8x1.25 Adhesive Stud Mount |
13 | Magnetic Base Kit |
B: Tolerance | |
00 | 100 mV/g ± 20% (10.2 mV/m/s^2 ±20%) |
C: Approvals | |
00 | No Approvals |
01 | CSA, ATEX, IECEx |
|
|
